Features
Essentials
- 3.5 metre transport width
- 23 sowing rows at 155mm (6”) spacing
- Dual depth wheels for excellent floatation
- Heavy duty, robust construction
- Choice of tyne
- Infinitely adjustable gearbox
- Rear depth wheels to maximize sowing width in relation to transport width
Drive
Our time-tested, infinitely adjustable gearbox allows small incremental changes to the sowing rates – important when sowing small seeds. 31 speed gearbox and electric drive options are also available by request.
Wide Loading Platform
A large 450mm wide rear loading platform complete with handrail and steps.
Robust Main Chasis
The frame includes, large 16mm thick wheel mounts, fitted with high flotation tyres, two 12mm front to rear frame supports and three 75mmx75mm mounting ranks. Lead between ranks are 470mm between 1 and 2, 425mm between 2 to 3.
Calibration
The machine includes electronic scales for sowing rate calibration and an in-cab electronic hectaremeter.

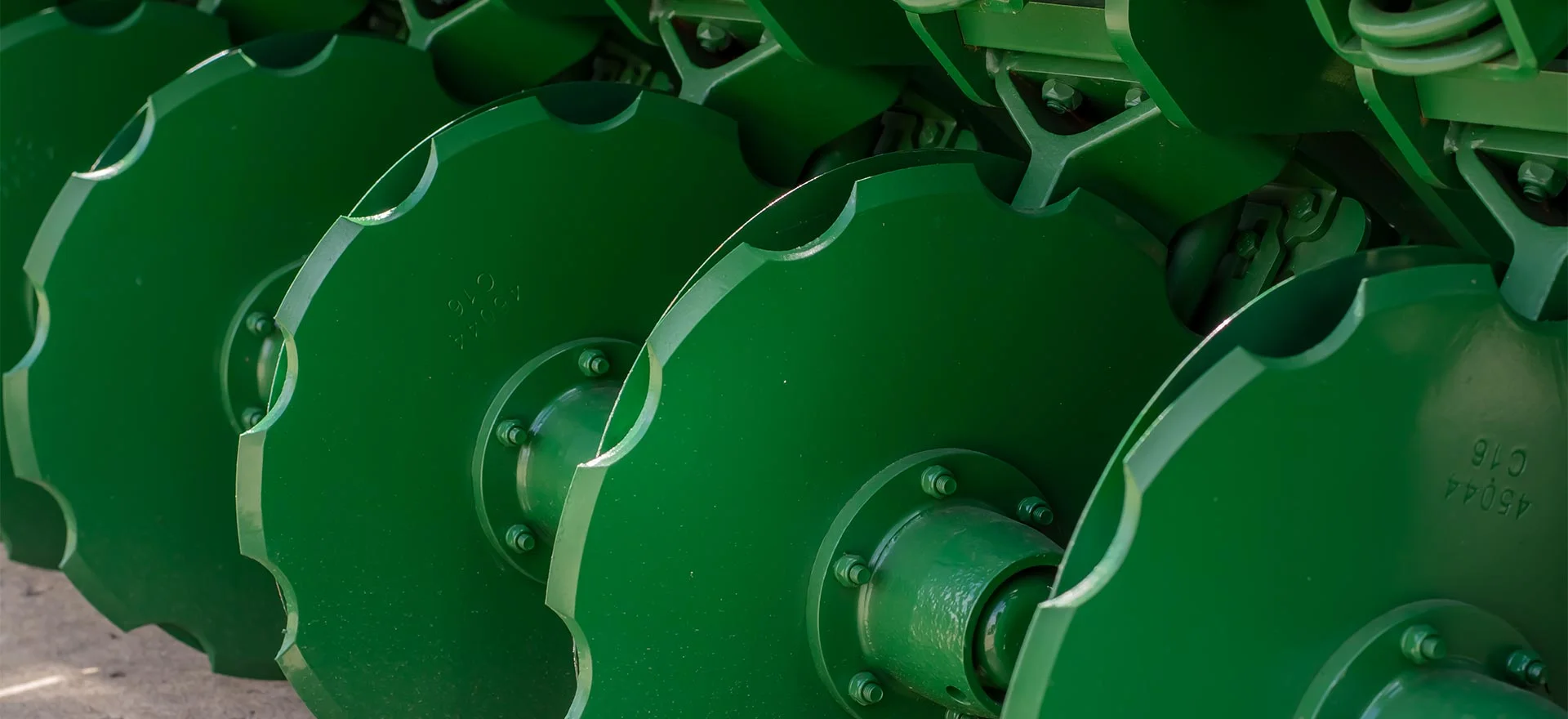

Double Disc Opener
The John Shearer double disc opener is well built to perform in many different soil types and conditions. The compact and unique design, ensures the press wheel is much closer to the sowing boot than most others on the market. The opener is a true parallelogram unit and is based around two carriers. The mounting carrier attaches the unit to the frame. The main carrier has the ground engaging coulters and press wheel attached. The press wheel provides depth control, as well as compaction of the soil around the seed, to assist with germination. Being a parallelogram design, the opener’s ability to follow ground contours is enhanced for a more uniform seed placement.
The opener has 254mm (10”) of vertical ground following capability.
Models
| Model | Openers | Rows | Row Spacing | Wheels |
|---|---|---|---|---|
| 35002301E | Double Disc Openers | 23 | 155mm (5.9”) | 215/85 R16 |
| 35002302E | Double Disc Openers | 23 | 155mm (5.9”) | HD, 12.5/80-15.3 |
| 35002702E | Double Disc Openers | 27 | 127mm (5”) | HD, 12.5/80-15.3 |
Options and Accessories
| Part Number | Description |
|---|---|
| 46729 | Hydraulic lift kit for coulter bar |
| 46675 | Electric Drive in lieu of Gearbox |
| 46727 (p/p) | Double Disc Openers with Plain/Plain coulter discs in lieu of standard Scallop/Plain |
| 46702 | Dual heavy duty wheels, 12.5/80-15.3, in lieu of standard |
| 46690 | Jackal hectaremeter in lieu of MC300 hectaremeter |
| 47780 | Plain coulter bar kit for attaching to front of seeder, 150 mm row spacing, 13 3/8” coulters |
| 47781 | Fluted coulter bar kit for attaching to front of seeder, 150 mm row spacing, 16” coulters |
Specifications
| Dimensions | |
|---|---|
| Width | 3500mm (11′ 5″) |
| Length (ex. hitch) | 2810mm (9′ 3″) |
| Length (inc. Coulter Bar, ex. hitch) | 2995mm (9′ 10″) |
| Length (inc. Hitch) | 4735mm (15′ 6″) |
| Height (Maximum) | 2358mm (7′ 9″) |
| Weight Empty | 2751kg (6892 lb) |
| Weight Full | 4496kg (9913 lb) |
| Under-Frame Clearance (Typ.) | 649mm (25.5″) |
| Road Clearance | 170mm (6.7″) |
| Shipping Length | 3.5m |
| Shipping Width | 2.3m (axles removed) |
| Shipping Height | 2.2m |
| General | |
|---|---|
| Gearbox | Infinitely Adjustable (optional electric drive) |
| Output Range – seed | 1 – 240 kg/ha |
| Number of Openers | 23 |
| Standard Opener Type | Double Disc Openers |
| Total Vertical Travel | 250mm (9.8″) |
| Row Spacing | 155mm (6.1″)/127mm (5”) |
| Sowing Width | 3450mm (11′ 3″) |
| Rank Spacing – Front | 470mm (18.5″) |
| Rank Spacing – Rear | 425mm (16.7″) |
| Tyres | 215/85 R16 |
| Wheels |
16” HD |
| Front Hopper Capacity | 610 litres / Wheat: 488 kg (1077 lb) |
| Rear Hopper Capacity | 746 litres / Super: 881 kg (1942 lb) |
