Tillage is made easy

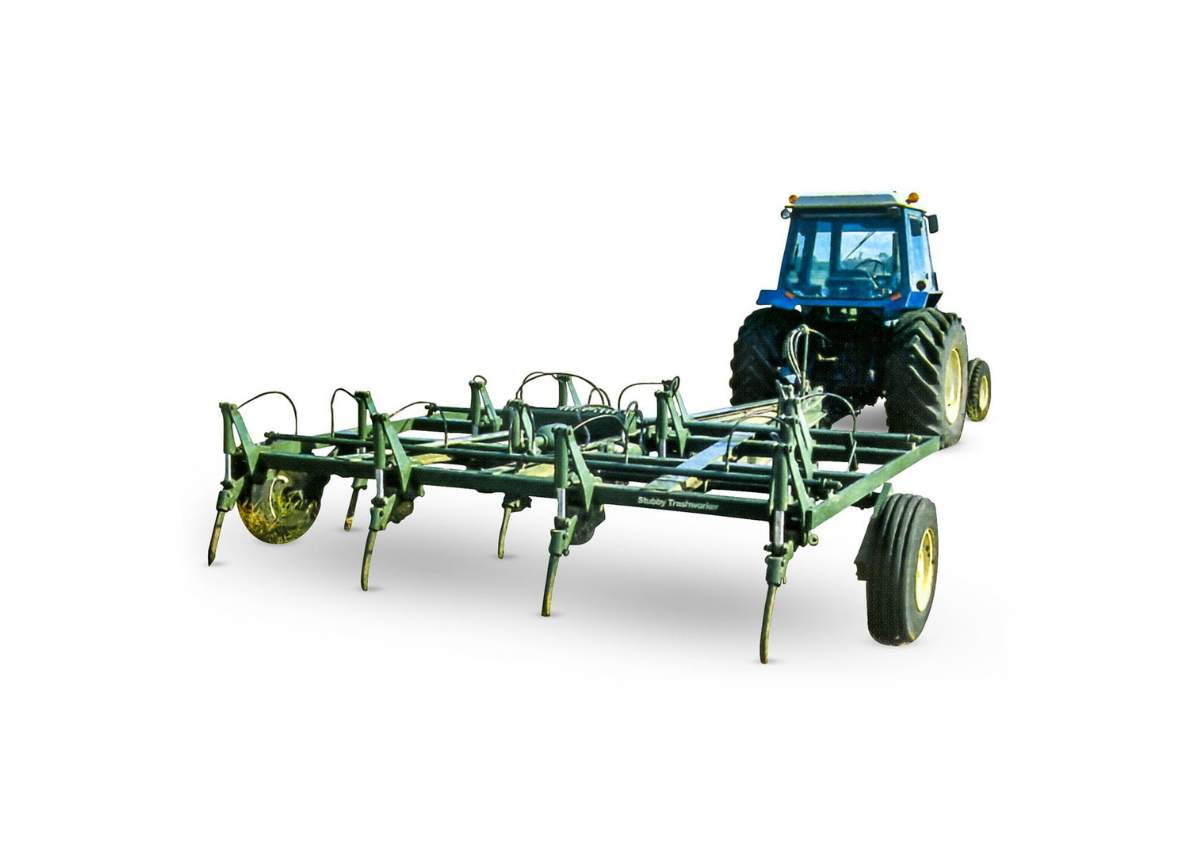

Our timeless, Stubby Hydraulic Trashworker is a trailing cultivator for smaller operations. The Shearer hydraulic tyne assemblies are adjustable on the go, up to 455kg (1000lb).
- 1000lb hydraulic tynes
- Versatile primary and secondary implement
- Use for trash farming and stubble mulch operations
- Ideal chisel plough to break up hard pans
Essentials
- Trailing hitch
- 13, 15 and 17 tyne models
- 4.0m, 4.6m and 5.2m sizes
- High flotation tyres
- Excellent trash clearance; wide lead between rows and proven tyne layout
- Tyne breakout force adjustable up to 455kg (1000lb)
- Edge-on Tyne 50mm x 32mm (2″ x 1¼”)
Robust Construction
The frame is constructed of 100mm (4″) RHS and heavy duty, longitudinal “I” beam sections. The rigid hitch is constructed of 205mm x 135mm “I” beam sections, with the hitch tongue adjustable to tractor drawbar height and working depth. Tyne sections are heat-treated, nickel chrome high carbon steel. Pivot pins and bushes are 35mm diameter induction hardened. The tyne assemblies are clamped to the implement frame.
Available in 13 Tyne, 15 Tyne and 17 Tyne models
1000lb Hydraulic Tyne Assembly
The John Shearer 1000lb Hydraulic Tyne Assembly is tough and reliable and offers on the go tyne breakout pressure adjustment from the tractor seat. The easy to fit clamp-on design can be mounted onto 100mm x 100mm (4” x 4”) heavy duty RHS and retrofitting to existing machines is simple with easy to follow installation instructions.
| Model | Tynes | Width |
|---|---|---|
| 571301 | 13 | 4.0m (13’) |
| 571302 | 15 | 4.6m (15’) |
| 571303 | 17 | 5.2m (17’) |
| Model | Description |
|---|---|
| 57050-5001 | 2 tyne ext. (13T only) |
| 57051-5101 | 4 tyne ext. (13T only) |
| 13 Tyne | 15 Tyne | 17 Tyne | |
|---|---|---|---|
| Width of cut | 4m (13’) | 4.6m (15’) | 5.2m (17’) |
| Power (sweeps) | 50 – 60 Kw (70 – 80 HP) | 55 – 65 Kw (75 – 90 HP) | 60 – 75 Kw (80 – 100 HP) |
| Power (Deep chiselling) | up to 125 Kw (170 HP) | up to 145 Kw (195 HP) | up to 165 Kw (220 HP) |
| Approx. weight | 1,870kg (4,110lbs) | 2,060kg (4,530lbs) | 2,150kg (4,730lbs) |
| Transport width | 4.7m (15’5”) | 4.7m (15’5”) | 5.2m (17’) |
| Packed Length | 4.3m (14’) | 4.3m (14’) | 4.3m (14’) |
| Packed Width | 2.9m (9’6”) | 2.9m (9’6”) | 2.9m (9’6”) |
| Packed Height | 0.71m (2’4”) | 0.71m (2’4”) | 0.71m (2’4”) |
| All Machines | |
|---|---|
| Wheel equipment | 9.00 x 16 x 8ply tyres |
| Transport clearance | 200mm (8”) |
| Tyne Ranks | 4 |
| Spacing Between Ranks | 1 & 2: 770mm 2 & 3 and 3 & 4: 950mm |
| Tyne Spacing | 305mm (12”) |
| Tyne breakout | Up to 454kg (1,000lbs) |
| Maximum working depth | 360mm |
| Under-Frame Clearance | 770mm |
